HikFire Addressable Smoke Detector HF-AS1 (O-STD)

Availability:In Stock!

KSh 4,000.00

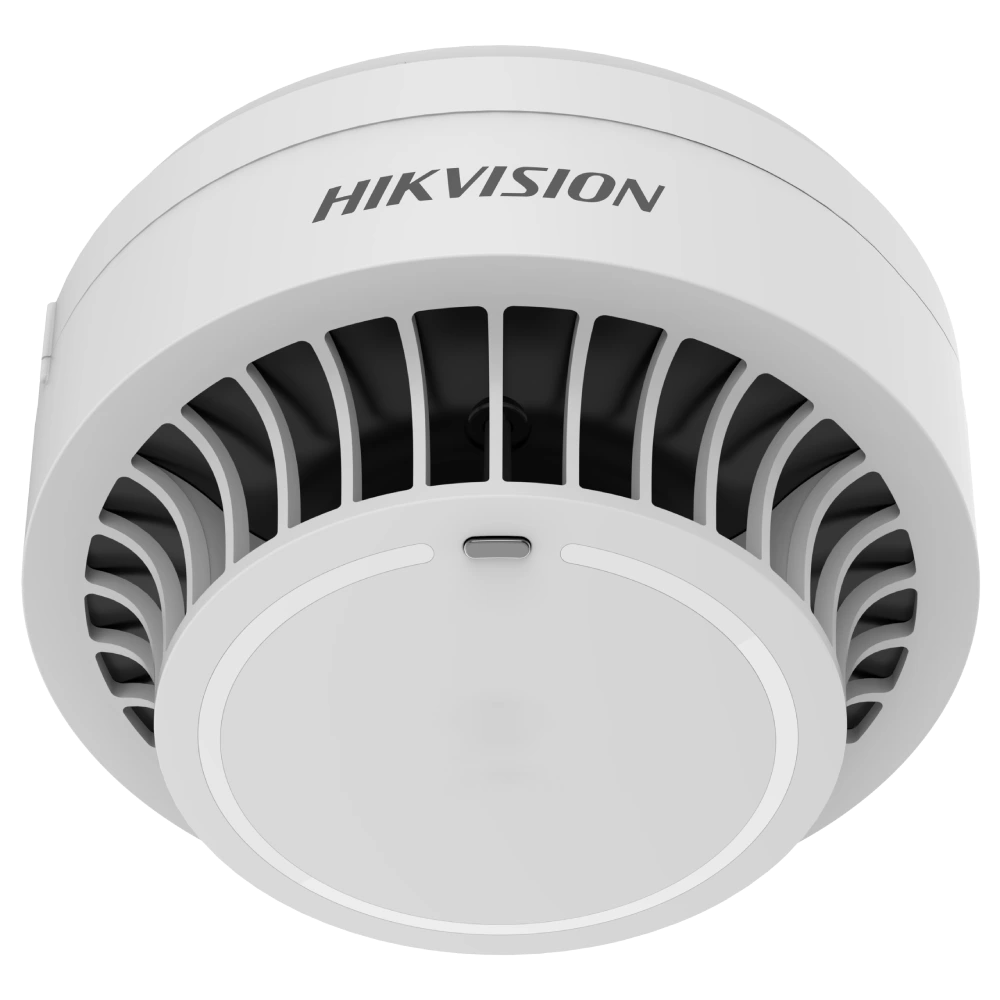

HikFire Addressable Smoke Detector HF-AS1 (O-STD)

The HikFire HF-AS1 (O-STD) Addressable Smoke Detector uses photoelectric sensing technology to detect smoke and transmit alarm information to the fire alarm control panel. Its two-wire connection and low standby current make it suitable for commercial, institutional and residential fire protection installations.

Order via Whatsapp
Compare
Categories: , , Tags: , , , , , ,

Description

Key Features

  • Photoelectric smoke detection technology

  • Addressable device identification

  • Two-wire connection

  • 24V DC operating supply

  • Red LED status indication

  • Low standby power consumption

  • Compatible with supported HikFire addressable fire alarm systems

Technical Specifications

Specification Details
Brand HikFire
Model HF-AS1 (O-STD)
Device Type Addressable Smoke Detector
Detection Method Photoelectric
Operating Voltage 24V DC (18–28V DC)
Wiring Two-wire
Standby Current ≤300 µA
Indicator Red LED
Recommended Cable Fire-resistant RVS 2 × 1.5 mm²
Maximum Cable Distance Up to 1,000 m, subject to system design
Application Addressable Fire Alarm Systems

Applications

  • Offices and commercial buildings

  • Hotels and hospitality facilities

  • Schools and hospitals

  • Shopping malls and retail premises

  • Residential buildings

  • Warehouses and institutional facilities
